Description
Product Description

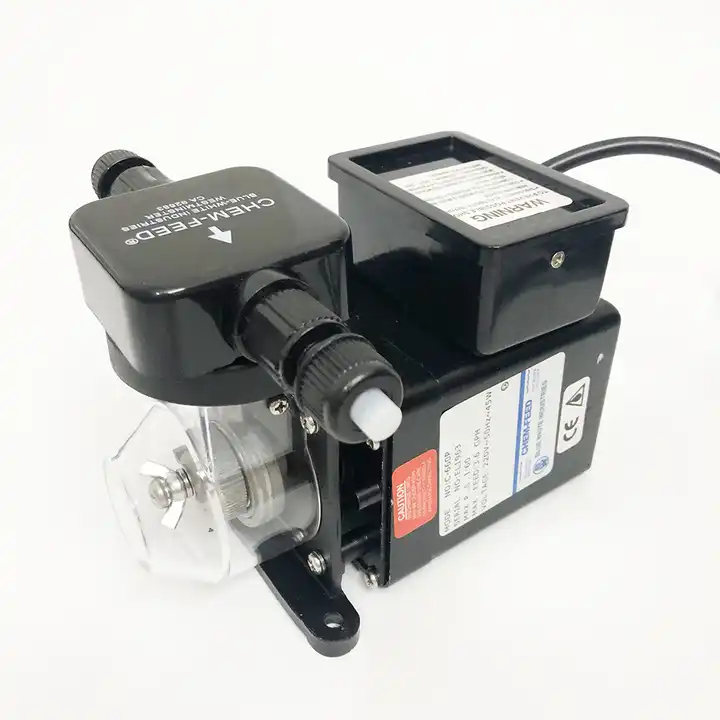

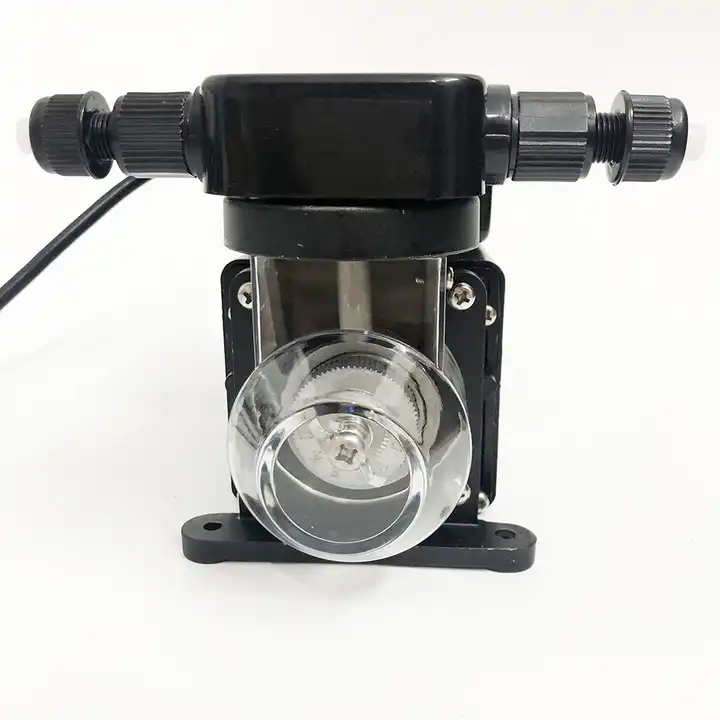

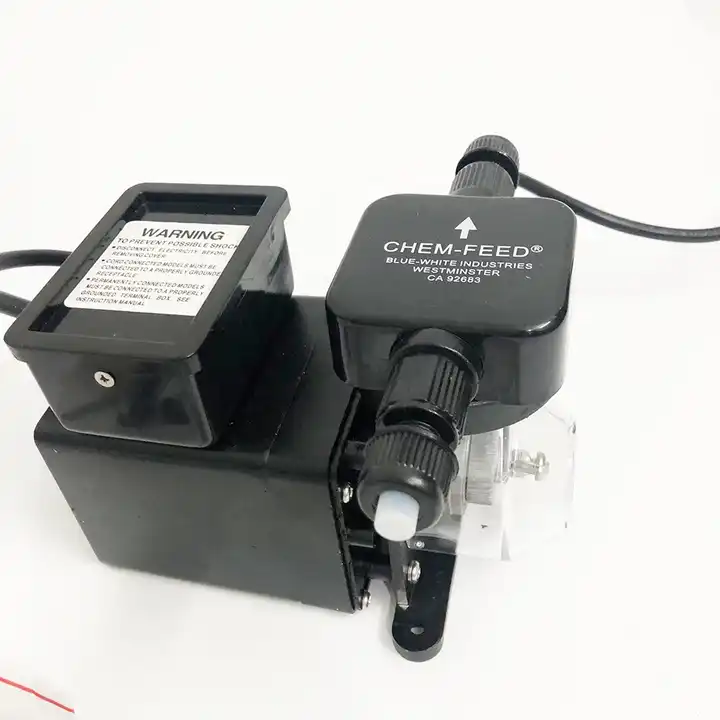

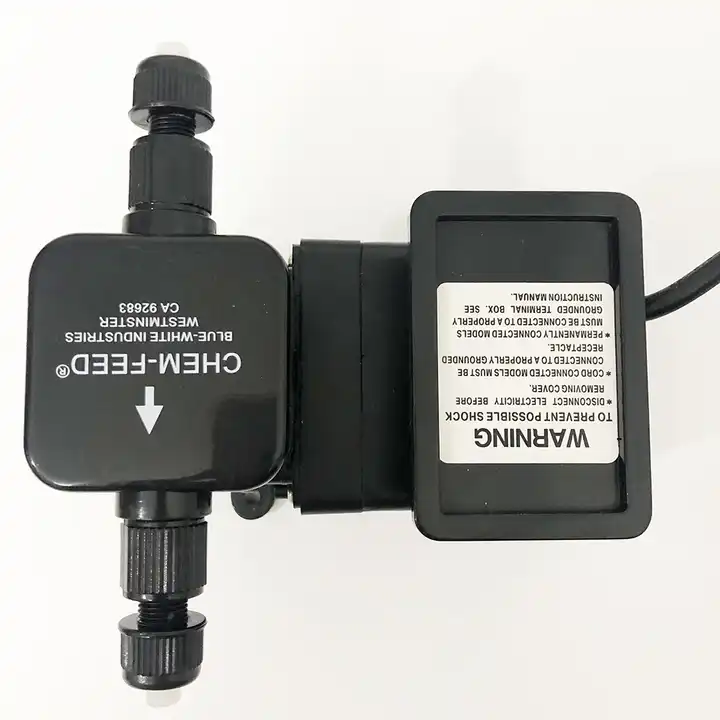

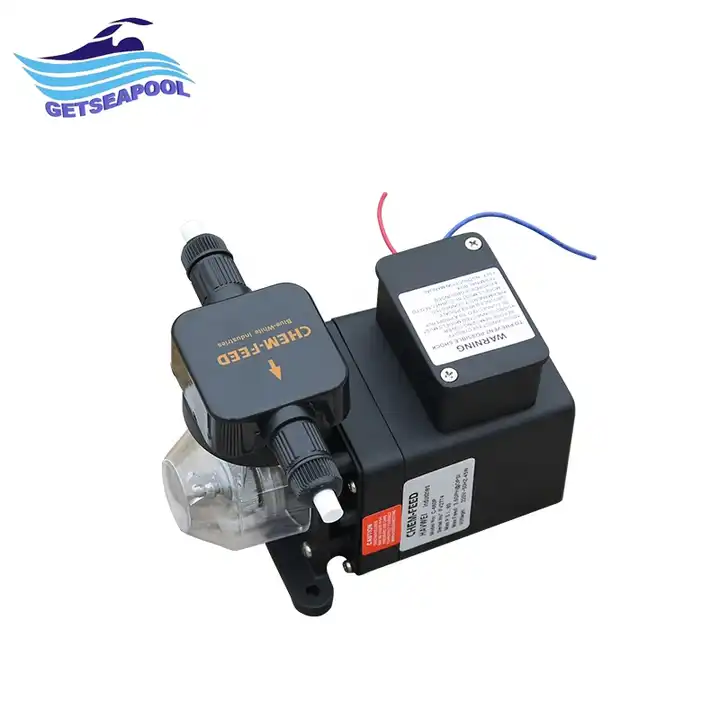

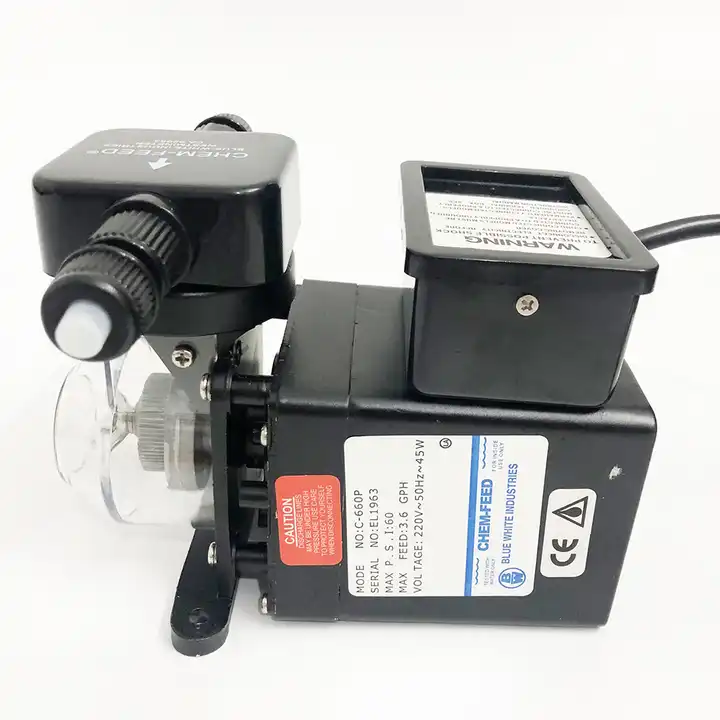

1. The metering pump is designed to inject chemicals into piping system.

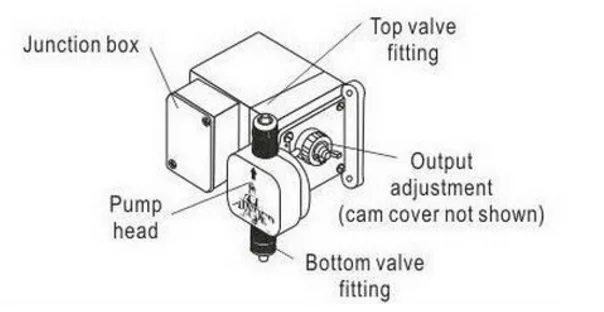

2. All models are equipped with a side mounted mechanical flow rate adjustment knob.
3. Optional on/off cyclical timers are available
4. A simple, high efficient standard design, moving parts are kept at a minimum level to help keep the unit nearly maintenance

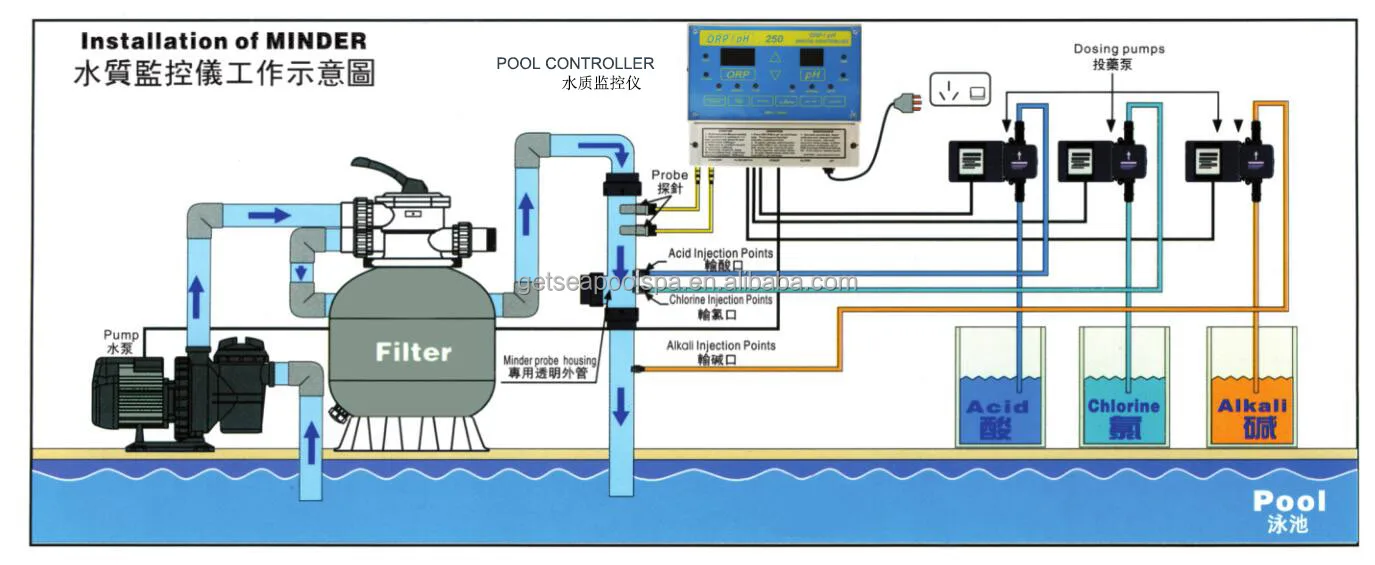

5. Generally used with water quality monitor. Can be fully automatic, semi-automatic control.
6. C-600P injector has an autofocus frame, front side head, easy to install and adjust
| Name | Pool dosing pump |
| Max pressure | 4bar |
| Flow rate | 13L/hr |
| Working form | Mechanical |
| OPR Control | Adjustable from 0 to 999mv |
| ph Control | Adjustable from 1.0 to 14 |
| ORP Sensor | Platinum electrode with 13-ft(4m) cable |
| ph Sensor | Glass electrode with 13-ft(4m) cable |
| Readouts | ORP(3 digits) and ph(2 digits) LEDs |
| Feed modes | Manual, automatic |
| Adjustments | Setpoint, calibration, limits, feed rate |
| Indicators | LEDs for feed mode, feed status, alarms |
| Safety | Audio,visual and remote alarms |
| out-of rang limits and overfeed safety timers | |
| Cabinet | Polystyrene 9x7x4in. (22x18x10cm) |
| Electrical | AC 220V/50hz |
| Plumbing | PVC tees for 0.5inch,1.5inch or 2inch line |
| Warranty | 1 year on electronic module |
| Shipping | 12x12x12-n(30x30x30cm) carton |
| 9lbs(4kg) without pumps |
