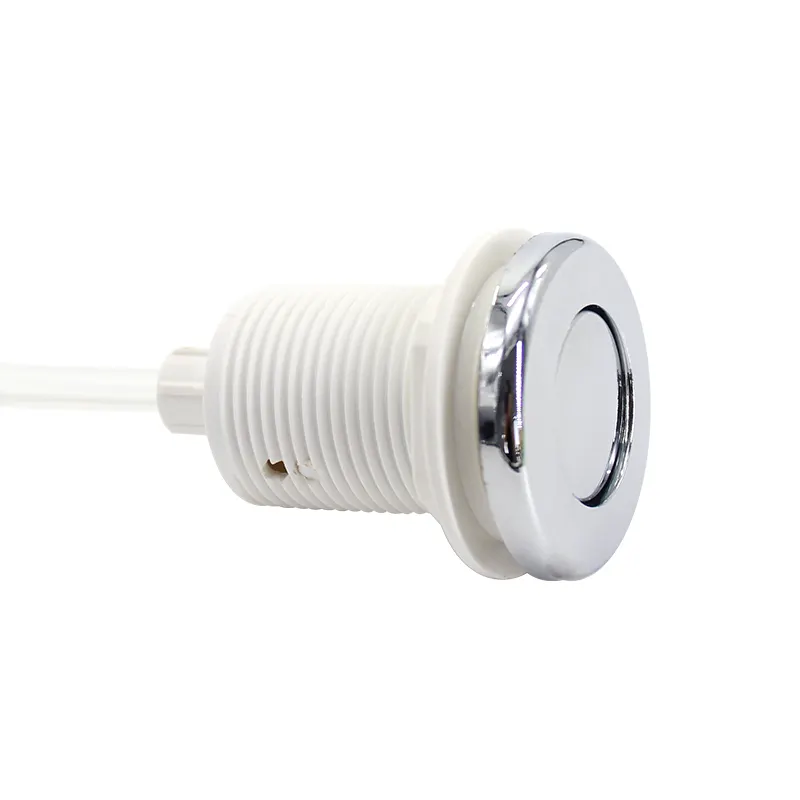

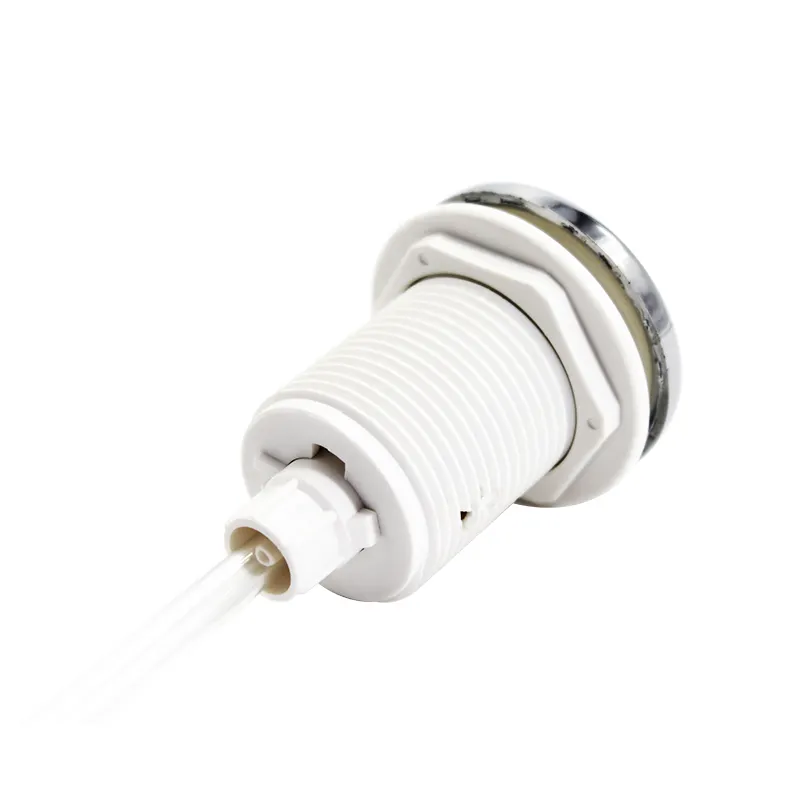

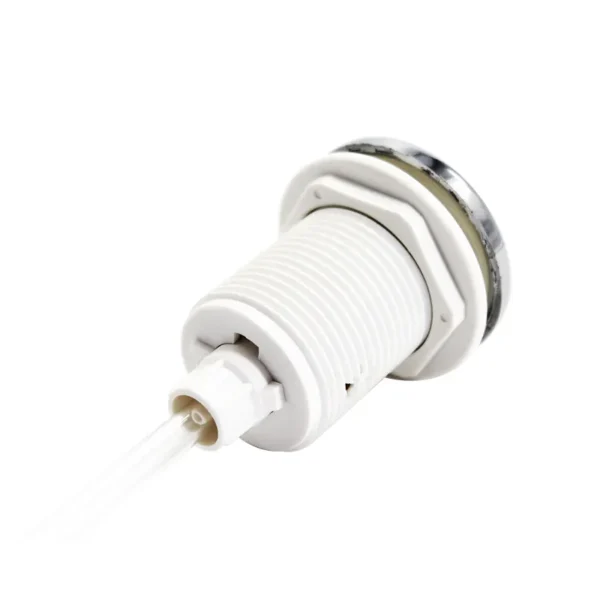

Stable Swimming Pool/SPA Air switch

( 0 reviews )
Place of Origin:                  Guangdong, China
Brand Name:                      Getsea
Model Number:                  SP0022+0023
Type:                                     Pool
Product Name:                   PVC body abs cover push button switch
Material:                              ABS
Style:                                     Dual-side Skirt (Left Skirt)
Massage Type:                   Air Massage
Installation Type:              Drop-In
Drain Location:                  Center
Voltage:                              110 V and 240V for option
Usage:                                 Spa accessories
Application:                        Bathtub,spa,hot tub,whirlpool,massage tub

Add to quote

Description

Product Description

1. SPA air pressure switch has a snap action switching for higher current capacity. SPDT contact form and switch deadbands (also referred to as mechanical differential or hysteresis).

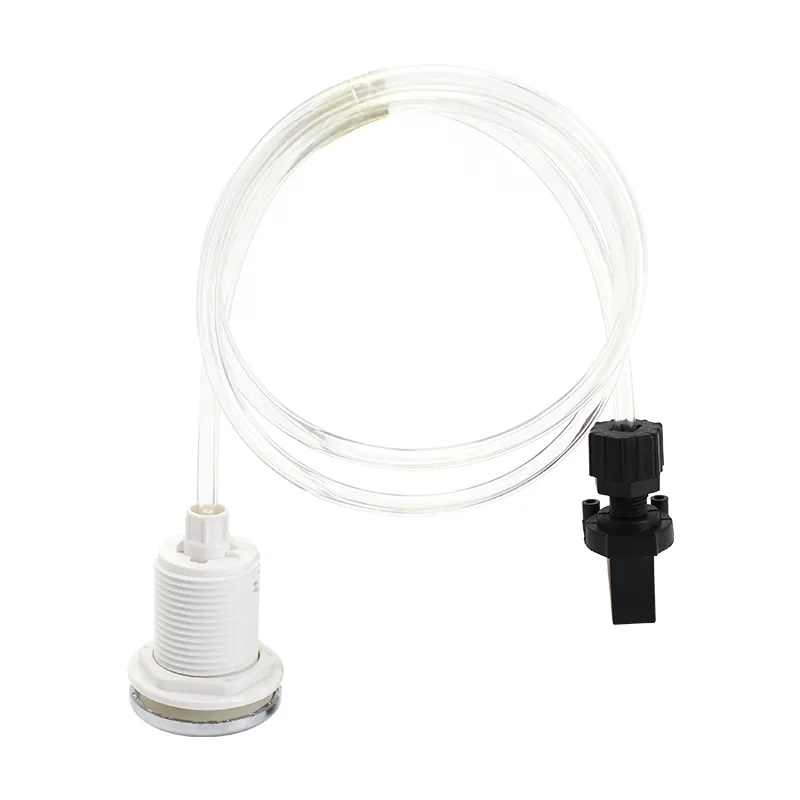

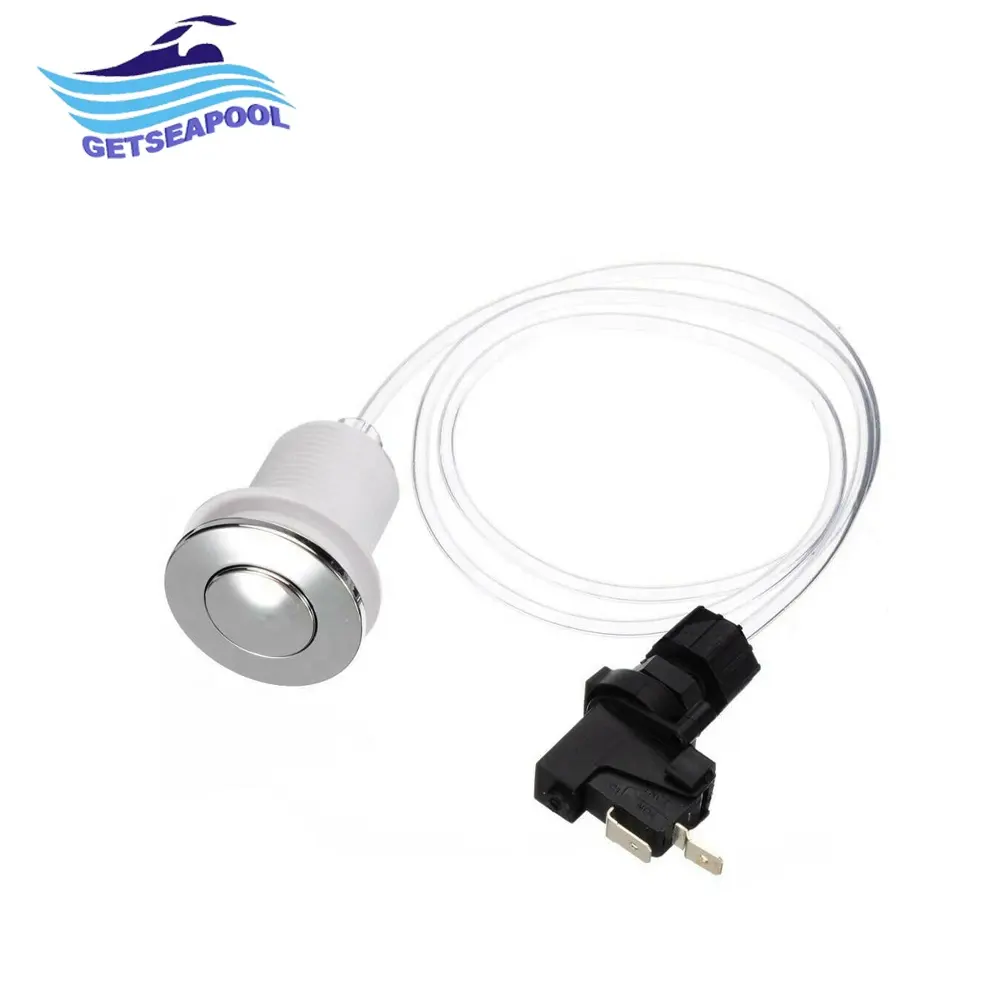

2. Can use together with air button for remote control purpose.

3. Apply to: food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, out door machines, medical equipment etc.

4. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions:

♦ Momentary action: when we push the air button , the air switch will work. When we release the air button , the air switch will stop to work. This is the way the basic pressure switches are working.

♦ Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch



Name Bathtub Air Switch
Diameter 46mm
Used for Bathtub
PVC body L 64mm
Material Chrome-plated ABS front
Connection 3mm OD tube
Working pressure 1-5kpa; 5-10kpa; 10-20kpa
Pressure tolerance 100kpa
Temp range -10℃~85℃
Contact mode Single-pole single-throw or single-pole double throw
Electric performance 0.1A 125/250V ; 15A 125/250V;3 A 125/250V; 5A 125/250V; 16AA 125/250V; 21A 125/250V
Terminal 6.3mm or 4.8mm inserted terminal
interface inserted interface of outer diameter 4mm(optinal 1/8)
